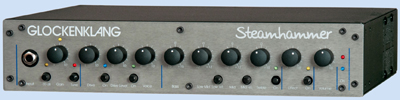

Steamhammer head

3.4 kg (7.5 lbs), 1.5 rackspaces

The Steamhammer is our new generation Class D amp. Like all other Glockenklang amps, it features a warm and dynamic sound up to full power. Class A input stage, footswitchable Drive stage with Level pot and adjustable Voice filter, on-switchable 4-band eq with 2 frequency switchable Mids, switchable effects-loop, mp3-player input, symmetrical, level-switchable DI-out, tuner out and phones output are the main features. 19" rack-ears, bag and high-end mains cable are optional.

Dynamic - Musical - Power - Warmth - Drive section with Voice-filter - Lightweight

Impedance switchable power either 700 W / 4 ohm, 380 W / 8 ohm or 700 W / 2,7 ohm, 470 W / 4 ohm, 240 W / 8 ohm

Support:
Manual
Technical Data

Tests:
PREMIERGUITAR.com
Bassic.ch Paulitos Review

Features:

High performance class D power amp section 700 watts / 4 ohms, 380 watts / 8 ohms,
switchable to 700 W / 2,7 ohms, 470 W / 4 ohms, 240 W / 8 ohms (switch at rear)
Drive section with Drive and Level pots, on-switchable Voice-filter adjustable, on-switchable (also by footswitch)
Excellent 4-band equalization section with 2frequency switchable Mids, on-switchable
LED overdrive indicator for pre amp
LED indicators for switch functions
High impedance class A input stage
Effect Return also usable as mp3 player and additional mixing input
Balanced DI out, switchable level
Tuner out
Phones out
Compact and robust design
Lighweight 3.4 kg (7.5 lbs)

Inputs:
 Input for instruments with normal level, switchable for instruments with higher level

Tone controls:
 On switchable 4-band EQ
Bass +15 dB 60 Hz, -15dB 20 Hz
Low Mid +/- 12 dB 150 / 240 Hz
Mid +/- 12 dB 770 / 1.5 KHz
Treble +/- 15 dB 8 KHz

Effect lopps
1 parallel effects loop, post eq, intensity controlled by effects section on the
front panel, footswitchable, also usable as second, mixable input and mp3 input

Dimensions: 320 x 260 x 63 mm, 12.6" x 10.2" x 2.5" (1.5 rackspaces)

Weight: 3.4 kg, (7.5 lbs)
